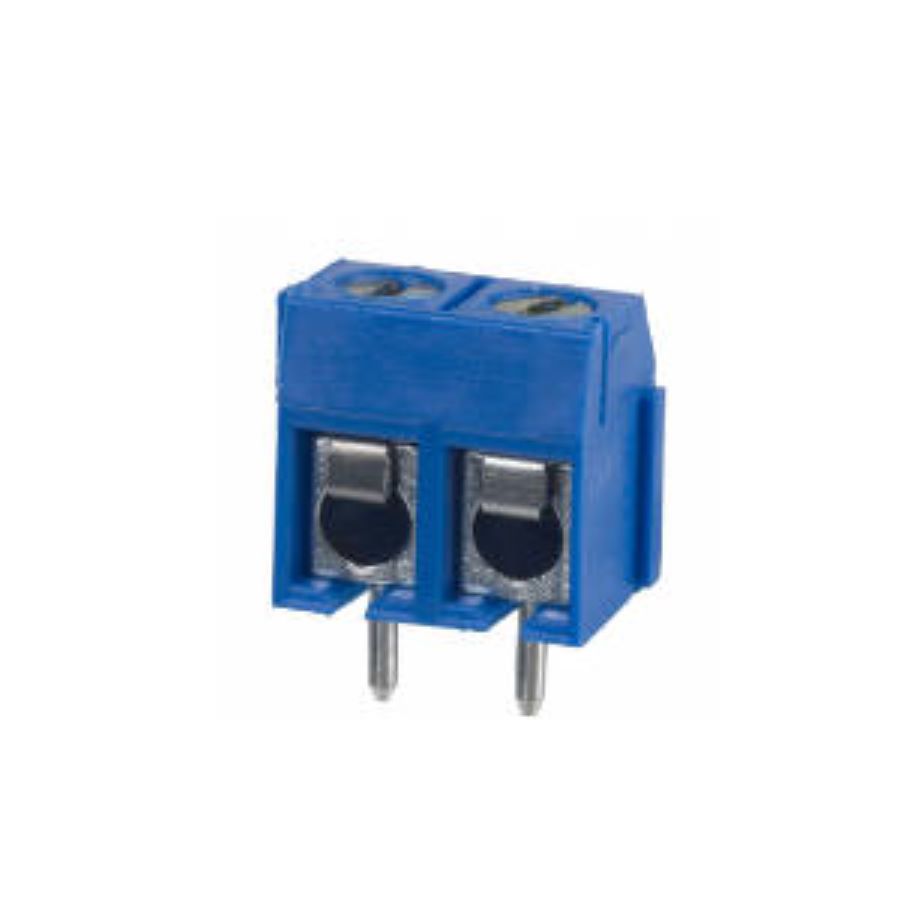

OSTTC020162
Manufacturer:
On Shore Technology
Mfr.Part #:
OSTTC020162
Datasheet:
Description:
Terminal Blocks Through Hole 2 5 mm 15 A 300 V 22 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Length | 11.2 mm |
| Width | 7.6 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Height | 9.9 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 7.5 mm |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin, Zinc |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5 mm |
| Current | 15 A |
| Current Rating | 15 A |
| Max Current Rating | 15 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Blue |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Max Voltage Rating (AC) | 300 V |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 14 AWG |
| Housing Color | Blue |
| Plating | Steel |
| Connection Method | Screw |
| Wire Gauge Range | 22 AWG to 14 AWG |
Stock: 7122
Distributors
pcbx
pcbxUnit Price$0.38131
Ext.Price$0.38131
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38131 | $0.38131 |
| 10 | $0.28409 | $2.84090 |
| 25 | $0.24752 | $6.18800 |
| 50 | $0.22287 | $11.14350 |
| 100 | $0.20129 | $20.12900 |
| 300 | $0.18117 | $54.35100 |
| 500 | $0.16306 | $81.53000 |
| 1000 | $0.15128 | $151.28000 |
| 3000 | $0.14147 | $424.41000 |
| 5000 | $0.13230 | $661.50000 |
